EH -1001
EH -1001
EH -1001

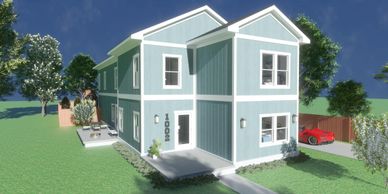

Created as a family friendly plan for the narrow lots of East Hill this plan features 5 bedrooms, 3 baths, and a living, dining, and kitchen area perfect of the modern family
AREA 2111 sq. ft.
Bedrooms 5
Baths 3
Base Price $2,500.00
EH-1002
EH -1001
EH -1001

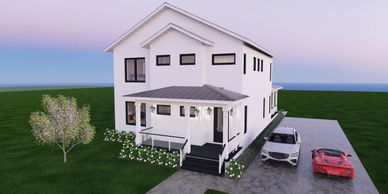

This classic East Hill design includes 5 bedrooms, 3.5 baths, 2 car side entry garage, with an open concept. The outdoor patio is right off the dining and kitchen area for expanded entertaining space. There is also a kid friendly loft space upstairs.
Area 2670 sq. ft.
Bedrooms 5
Baths 3.5
Base Price $2,500.00
MH-1003
EH -1001
MH-1003
Coming Soon
Architectural Design for Your Dream Home
Plans include the following:
- Cover Sheet with page index
- Foundation plan with dimensions (height, footing size, rebar, soil conditions, etc. must be handled locally)
- Detailed dimensioned floor plan (includes window schedule, door schedule, plumbing fixture locations, etc.)
- Four exterior views (front, rear, right, left)
- Roof plan (birds eye view of roof)
- Cabinet schedule
- Electrical plan
- A printable PDF file delivered to your email within 5 business days
Plans do not include the following:
- Architectural or Engineering Stamp - handled locally if required
- Floor Truss / Roof Truss Sheets – handled locally when required
- Site Plan - handled locally when required
- Drainage Plan - handled locally when required
- Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
- Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
- Energy calculations are NOT included.
- Wind load or seismic calculations are NOT included.
- Framing plans or beam sizes are NOT included.
- Other specific drawings that your local permit office may require.
